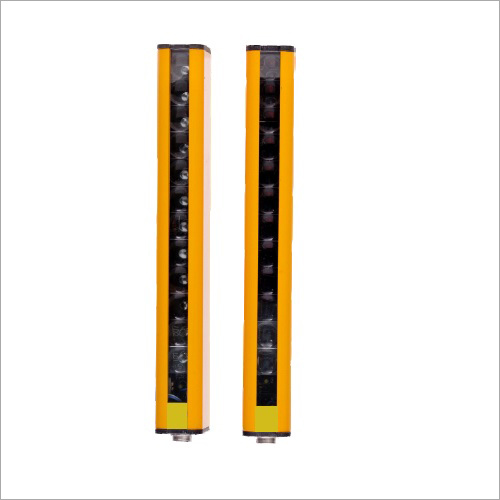

Safety Light Curtain Parallel Beam GSL-3620 Greatselec

Product Description

SPECIFICATIONS:-

• Power 12-24 volts DC
• Supply protection Reverse polarity protected
• output PNP or NPN/ NC
• Output indications Through LEDs
• Channel indication Led indication for each channel
• Response time On to off:10-15 m sec.off to on:50-100 m sec.
• No of beams 6,8,10,12,16,18,24,30,36
• Beam by pass Provided in all model
• Protected height 100mm-1500mm
• Pitch offered 20, 30,40, 50, 90mm
• Adjustable Range Up to 3 meters
• (Higher range up to 5,10,15 mtr. available)
• Standard Cable length 5 meters for emitter, 3 meters for receiver
• Operating Temperature Up to 55 Degrees centigrade
• Cross Section 50X36 mm
