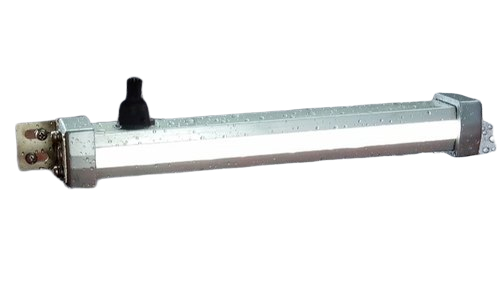

Waterproof LED CNC Machine Light12W 230vac

Waterproof LED CNC Machine Light12W 230vac

Product Details:

X

Product Description

WATTAGES

8W/12W/16W/24W/

VOLTAGES

24VDC / 110VAC / 230VAC

IP PROTECTION

IP 67

 and much more. The offered products are highly acknowledged by our clients for their features like durability, reliability, high illumination, energy efficiency, easy installation, less maintenance and long service life. Further, these products are widely used in streets, roadway, offices, commercial areas, residences, hospitals, hotels, etc.

Coolant, Water and Dust Proof Lamps suitable for wet and dry applications, specially packaging, CNC & SPM machines. IP 67 Grade Protections, Cool Day Lights these can be mounted either vertically or horizontally as per various customer application requirements.

  • Light diffuser  :  PMMA 4 mm thick
  • Housing material : Heady Duty Extruded Anodised Aluminium Housing
  • Mounting arrangement :  L Clamp, rotatable mounting to change Light Focus angle
  • LED Type : LM 80 Approved , 2835 Package LED ,0.2 watt/LED & 0.5 watt/LED
  • LED Light Angle : 120 Deg
  • Light Colour Approx.:  6500 K
  • Luminaire Light Yeild : 110-120 Lumens / Watt
  • Colour Rendering Index (CRI) min  : >80
  • Insulation resistance at 500 VDC : 1.3 X 104 Mega - Ohm
  • Operating temperature  : -400C to +850C
  • Operating Life : 50,000 Hrs
  • Standard Confirmity :  IEC 60947, IEC 60529, IEC 60068
  • Degree of Protection :  IP 65
  • Parameters  : 12W, 230 VAC
  • Model / Part No : CR-MLL-230-A-12W
  • Dimension In mm   :   : 385 X 35 X 35  (L XW X H)    :  15.15 x 1.37x 1.37 (inch)
